Product Overview

Redefining Sheet Metal Forming

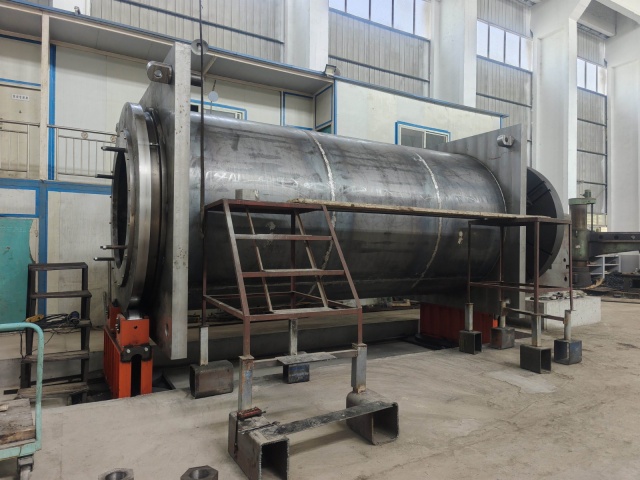

Our Fluid Cell Press utilizes advanced soft-tooling technology, employing high-pressure fluid as a universal punch combined with a high-strength rubber diaphragm. This unique "flexible forming" method perfectly replaces expensive rigid molds, making it ideal for complex part manufacturing in aerospace, automotive, and medical industries. Whether for shallow drawing, deep drawing, or irregular shapes, one machine handles it all with ease.

Key Advantages

Significantly Lower Tooling Costs: Requires only a single-sided female die (compatible with wood or resin molds), reducing tooling costs by 50%-70% compared to traditional stamping dies.
Superior Surface Finish: Uniform flexible pressure distribution prevents scratches and marks on the workpiece, ideal for appearance-critical materials like aluminum and stainless steel.
Unmatched Flexibility: No upper die changes needed; simply swap the lower die to produce different parts, drastically reducing changeover time—perfect for low-volume, high-mix production.
High Precision & Consistency: A precision hydraulic control system ensures stable pressure output, guaranteeing consistent dimensional accuracy for every formed part.

Applications

Widely applicable for drawing, flanging, embossing, and sizing of various metal sheets. Typical applications include: aircraft skins and structural components, automotive body panels and interior trim, medical implants and instrument casings, and kitchen appliance panels.

Note: This series can be customized for specific process requirements, such as ultra-deep drawing or hot forming.
